The Gen II Razors feature a 6x zoom range, a 34mm single-piece aircraft-grade aluminum tube and our sophisticated L-Tec turret system plus a host of additional high-performance features for state-of-the-art optics with deadly accuracy.

EBR-7C (MOA)

Packed with useful subtension data for long-range competition shooting or hunting, the EBR-7C is a hashmarked ranging reticle available in first focal plane. A windage tree in the lower two quadrants is perfect for fast follow-up corrections for both wind and elevation. Unique to the 7C, the numbers on the lower stadia have moved to the outside of the windage dots for less obstruction around the vertical stadia itself.

Included in the Box:

L-Tec Tool
4-inch sunshade
2 mm hex wrench
CR2032 battery
Lens cloth

OPTICAL FEATURES

APO System
Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
HD Lens Elements Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Plasma Tech
Cutting edge coating application process provides unparalleled coating durability and performance
First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle
Provides precise aiming under low-light conditions

CONSTRUCTION FEATURES

Tube Size
34 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Stealth Shadow Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

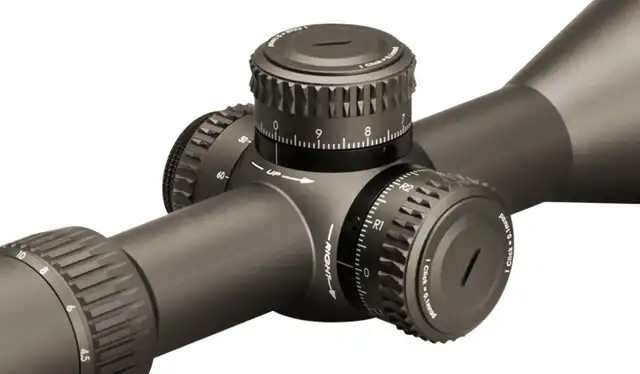

L-Tec™ Turrets
Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
External Rotation Indicator
Provides quick visual and tactile reference of elevation turret’s rotational position.
Locking Illumination
Locks illumination at preferred setting.
Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DESIGN FEATURES

L-Tec™ Zero Stop
Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position.
Maximized Turret Zero Adjustment
Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes.
Micro Adjust Zero Setting
Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
Turret Screws
Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
Erector Tube System
Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs

CONVENIENCE FEATURES

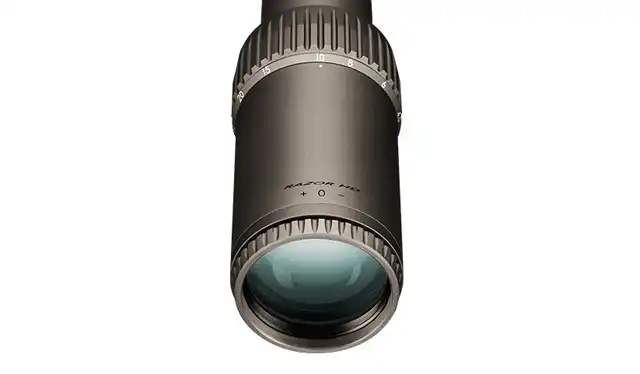

Fast Focus Eyepiece
Allows quick and easy reticle focusing.
L-Tec™ Tool
Included with your scope for precise adjustments to the turret.
Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

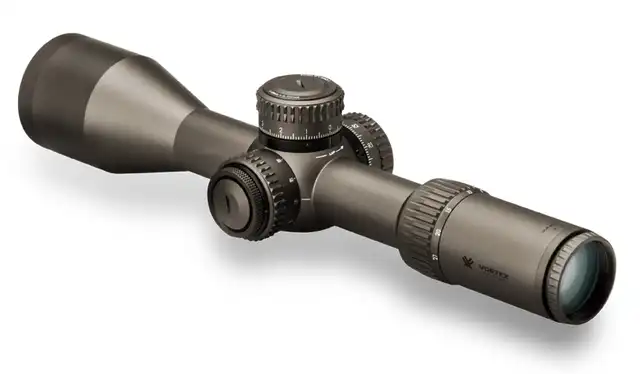

RAZOR® HD Gen II 4.5-27x56 FFP
