Longer eye relief, a fast-focus eyepiece, fully multi-coated lenses and improved, resettable MOA turrets ensure optimal performance in the field. The hard anodized one-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for a lifetime of waterproof/fogproof performance. The Crossfires deliver - and then some.

Product Manual

Parts Diagram

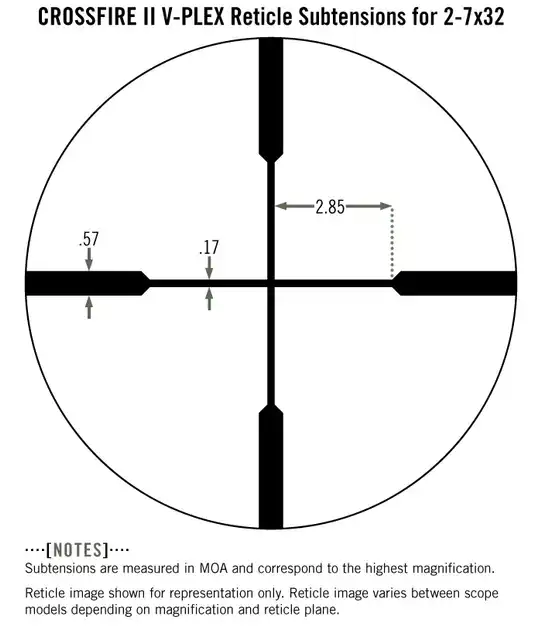

V-PLEX RETICLE (MOA)
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.

Included in the Box

Removable lens covers
Lens cloth

Features

Objective Lens Diameter: 32 mm
Eye Relief: 3.9 inches
Field of View: 42-12.6 ft/100 yds
Tube Size: 1 inch
Turret Style: Capped
Adjustment Graduation: 1/4 MOA
Travel Per Rotation: 15 MOA
Max Elevation Adjustment: 60 MOA
Max Windage Adjustment: 60 MOA
Parallax Setting: 50 yards
Length: 10.71 inches
Weight: 14.3 oz

OPTICAL FEATURES

Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES

Tube Size
1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Capped Reset Turrets
Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

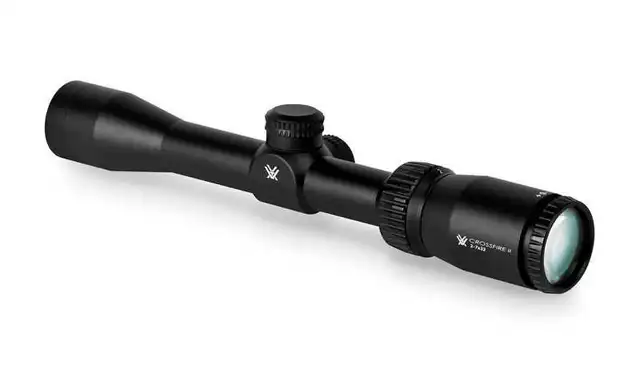

CROSSFIRE II 2-7x32 Rimfire V-Plex (MOA)
