Our XD Series Field and Brush Mowers are built for the demands of commercial use: frequent use, long runtimes, daily transport, and ease of maintenance.

The XD30 cuts 30” wide and features a robust Kawasaki FS600V electric-starting engine. Independent hydrostatic wheel drives ensure ease of handling without fatigue. Built in hand guards protect the operator while mowing brush.

Transport is simplified with integrated tie-down hooks that make trailering fast and easy.

Product Summary:

18.5 HP Kawasaki FS600V Engine, Electric Start
Hydrostatic Drive: 2 independent wheel drives for fingertip control
Variable speed drive, forward and reverse with zero-turn radius ability
30" cutting deck
Pivoting deck follows contours of ground
Oil pump for superior performance on hills
Handguards protect operator’s hands from brush and briars
Integrated tie-downs for ease of transport
Tool-free drain hose for simple oil changes
See Features and Specs Tabs for more product details

Warranty

Engine: 3 years residential; 3 years commercial
Machine: 2 years residential; 2 years commercial

FEATURES

Commercial Duty Engine

The Kawasaki FS600V V-twin features easy electric starting and fuel-efficient performance. With 18.5 HP (603cc) it has plenty of power to churn through thick grass and brush. A full pressure oil pump ensures smooth operation on slopes up to 20º. 49 State (not available in CA).

Hydrostatic Drive

Two independent hydrostatic wheel drives provide a zero-degree turning radius and virtually effortless maneuverability.

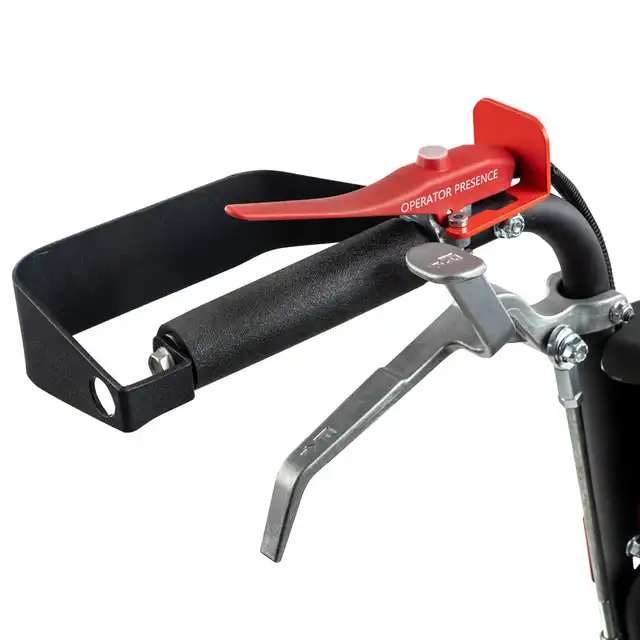

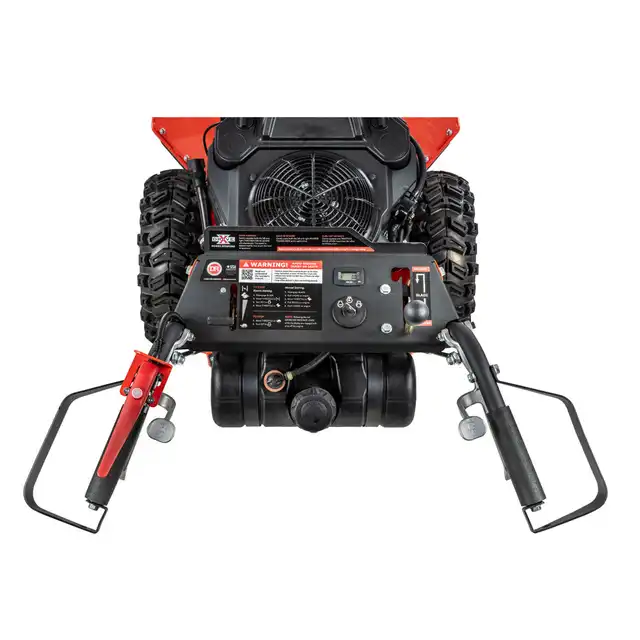

Intuitive Operation

Hydrostatic controls give you fingertip control. Squeeze the hand lever for forward movement, push the thumb lever for reverse. Action is pressure sensitive, so you set the speed.

30” Wide Pivoting Deck

The 30" deck is wide enough for effective clearing but is still very maneuverable. Unlike rigid, fixed decks found on some mowers, the DR deck pivots from side to side, allowing it to follow the contours of rough terrain. This feature minimizes scalping and improves traction.

Custom-Made Blade Spindle

Made of 1.375" thick cast iron with oversized double sealed bearings, the blade spindle is integrated into the deck housing and reinforced for vibration-free performance. Designed to provide years of maintenance-free use (and abuse!).

Integrated Tie-Downs

4 welded steel hooks (2 on each side of mower) provide secure anchor points for transportation.

Tool-Free Drain Hose

Makes removing oil fast, neat, and easy. No tools needed, just uncap and drain.

Hand Guards

Operator’s hands are protected from brush, briars, and other obstacles.

Assembled in the USA

Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.

SPECS

CUTTING

Cutting Height: 4"
Cutting Width: 30"
Number of Blades: 1

DIMENSIONS

Handlebar Height: 38.7"
Height: 42"
Length: 76"
Shipping Weight: 400 lbs
Weight: 379 lbs
Width: 34"

ENGINE

Air Filter: Dual-Element
Cooling Methods: Air Cooled
Displacement: 603cc
Engine Type: OHV
Horsepower: 18.5
Lubrication: Full Pressure Pump w/Oil Filter
Make: Kawasaki
Model: FS600V
Number Of Cylinders: 2
Oil Capacity: 57.6oz
Oil Type: SAE 30W HD
RPM Speeds: 3600 rpm
Starting Type: Electric

FUEL SYSTEM

Fuel Capacity: 2 gal.

GENERAL

Accepts Attachments: No
CARB Certified: Yes
Assembly: Yes

WHEELS/TIRES

Number of Tires: 2
Tire Size: 16" x 5.5"
Tread: Directional Tread

Warranty

Engine: Warranty 3 Year Residential / 3 Year Commercial
Machine: Warranty 2 Year Residentia / 2 Year Commercial

MATERIAL

Deck: 12 Gauge
Frame: Steel
Frame Thickness: 11 Gauge

Restrictions may apply.
49-State (Not available for sale in CA)

DR Field and Brush Mower XD30

Q & A
