MODEL: Watchman IR Illuminator

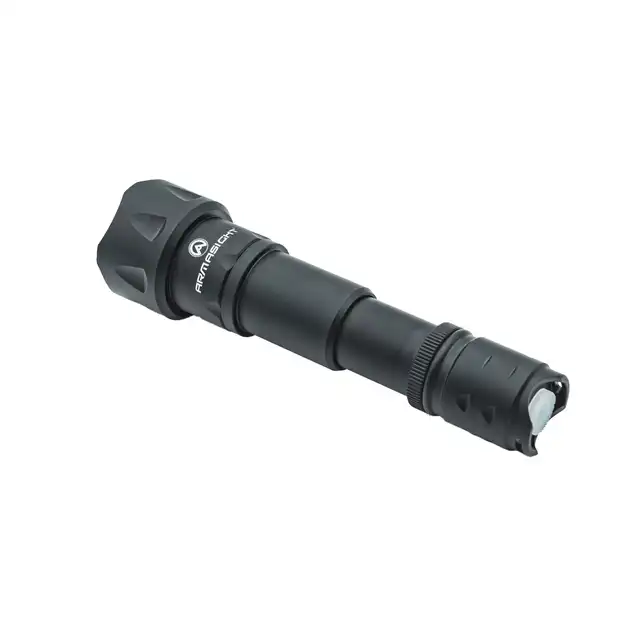

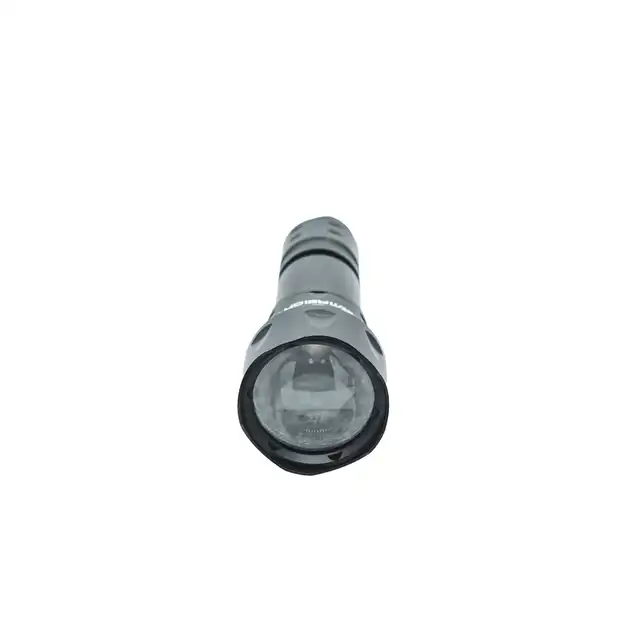

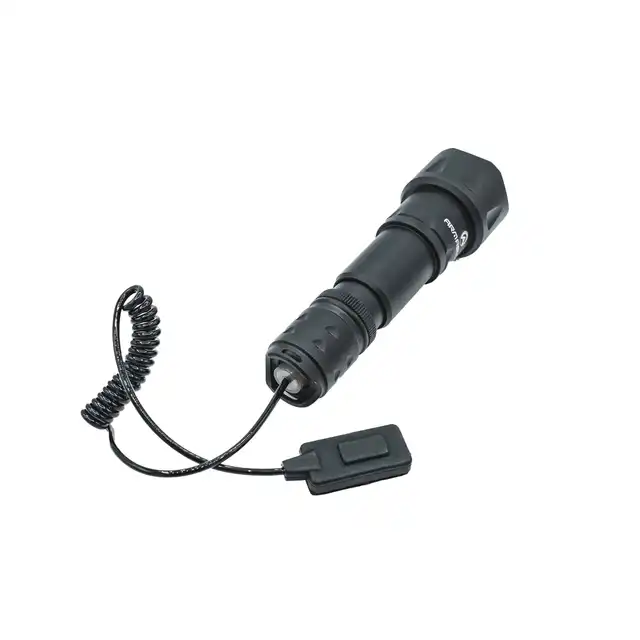

Powered by VCSEL technology, the Watchman IR Illuminator helps positively ID targets and track prey beyond 500 yards. This device features three brightness settings to aid visibility when there is low to no ambient light available and can focus as low as 3 degrees and out to a 14-degree field of view. The Watchman works great as a handheld unit however, if the mission dictates, you can mount it to your firearm or night vision device via the included 30mm ring. The push button tail cap can be swapped out for the provided tape switch if it is needed in a more tactical application. The body is constructed with aircraft-grade aluminum and is built to be shockproof with an IP67 waterproof rating.

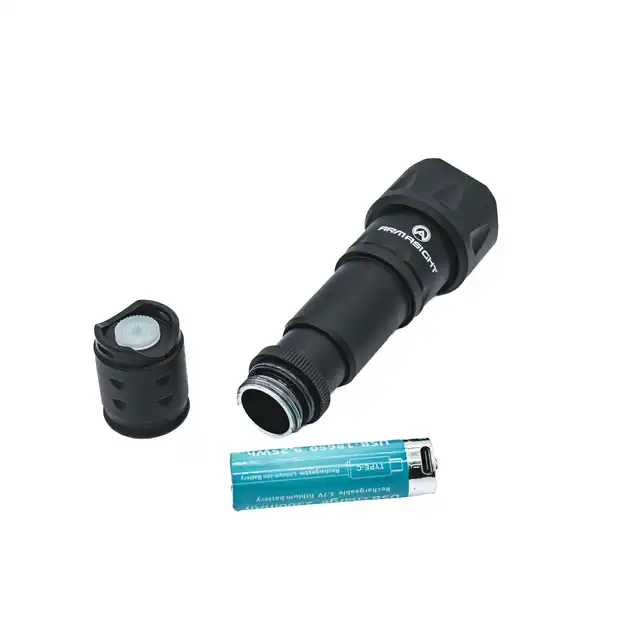

Since IR illuminations are invisible to the naked eye, a small red light located at the tail cap will light up when the unit is powered on. If you accidentally leave the illuminator on you won’t have to get a new battery. Simply recharge the 18650 with the included charging cord.

Features

Three Output Levels
Adjustable Field of View
Red Light Power-on Indicator
Weapon or Optic Mountable
Included: 30 mm Ring, Extended Tape Switch Tail Cap, 18650 Rechargeable Battery, Charging Cable

Specifications

Field of View: 3–14 Degrees
Wavelength: 850nm
IR Source: VCSEL
Optics: Fresnel
Battery Type: 1 x 18650 (Included) or 2 x CR123 (Not Included)
Mount: 30 mm Ring Mount (Included)
Switch: Tail Cap Button / Extended Tape Switch (Included)
High Output: 600 mW
High Runtime: 5 Hours
Medium Output: 350mW
Medium Runtime: 8 Hours
Low Output: 175 mW
Low Runtime: 15 Hours
Effective Distance on High Output: Up to 1,000 Meters
Operating Temperature Range: -20 – +60 Celsius
Body Material: 6061 T6 Aluminium
Finish: Type II Hard Anodized - Black
Weight: 5.6 oz
Length: 5.5–6.5in
Body Width: 30mm
Bezel Diameter: 1.76in
Waterproof: IP67
Shockproof: Yes
